Standard Series/Stack type actuators

Series P

piezosystem jena Exclusive Distributor Taiwan

Part #P-110-00
Motion4 µm
Capacitance0.34 µF
Stiffness210 N/µm

Product Features

No pre-load
Motion up to 82 µm for P actuators
High stiffness up to 210 N/µm for P actuators
Blocking forces up to 850 N for P actuators

Select Model

Quantity

Quick Inquiry

Call Us Email Us Contact Us About This Product

Product Description

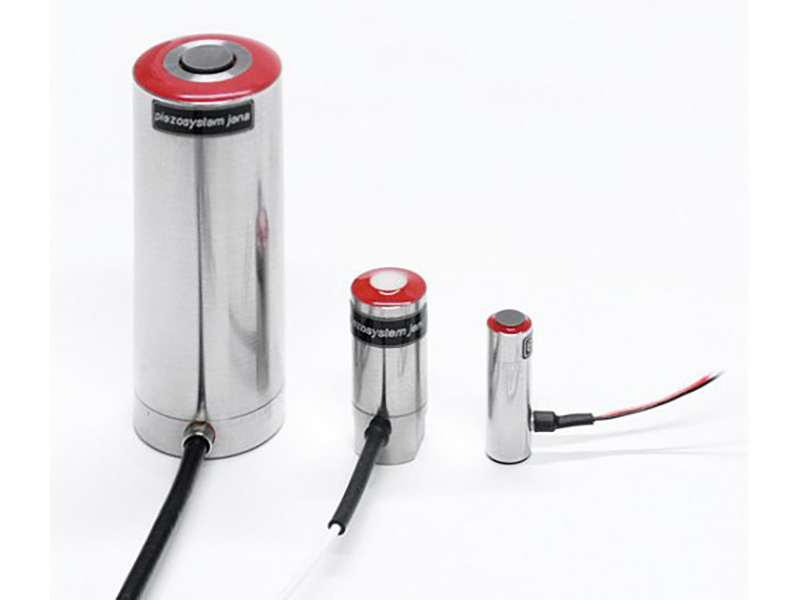

Series P piezo actuators are stack type actuators built in a multi-layer technique. These actuators come without a pre-load but can still withstand a medium pressure force.

These piezo actuators are encased in a stainless steel housing.

P series actuators should be fastened with screws or clamps on the actuator’s bottom plate. These actuators are not designed for dynamic applications.

Product Specifications

Name	UNIT	P 4/10	P 80/10
Part #	-	P-110-00	P-117-00
Motion (-10/+20%)*	µm	4	82
Capacitance (±20%)**	µF	0.34	7.2
Stiffness	N/µm	210	10
Blocking force	N	850	850
Resolution***	nm	0.008	0.16
Dimensions – L	mm	20	91
Diameter	mm	10	10

*Typical value measured with an NV 40/3 amplifier. **Typical value for small electrical field strength. ***The resolution is only limited by the noise of the power amplifier.

Related Files

Series-P-Datasheet.pdfDownload
Series-P-Spherical-Tip-Part-Drawing.pdfDownload
Series-P-Part-Drawing.pdfDownload

FAQ

How do I choose between open-loop and closed-loop versions?

Choose closed-loop when you need absolute positioning accuracy and repeatability (e.g. measurement, alignment). Open-loop is more cost-effective and responds faster when you only need relative fine motion or scanning, or when your system already has its own feedback.

Can I test the unit before deciding?

Nahshon is the exclusive distributor of piezosystem jena in Taiwan and keeps commonly used demo units available for scheduled testing, with Chinese-language selection support and direct access to factory engineering.

How do I confirm pricing and lead time for Series P?

Add Series P along with your stroke, load and accuracy requirements to your inquiry list, and we'll help confirm the selection and reply with the factory quote and lead time.

Series Models

Standard Series
