產品型號
NV200-2/D NET
產品描述
型號
數量

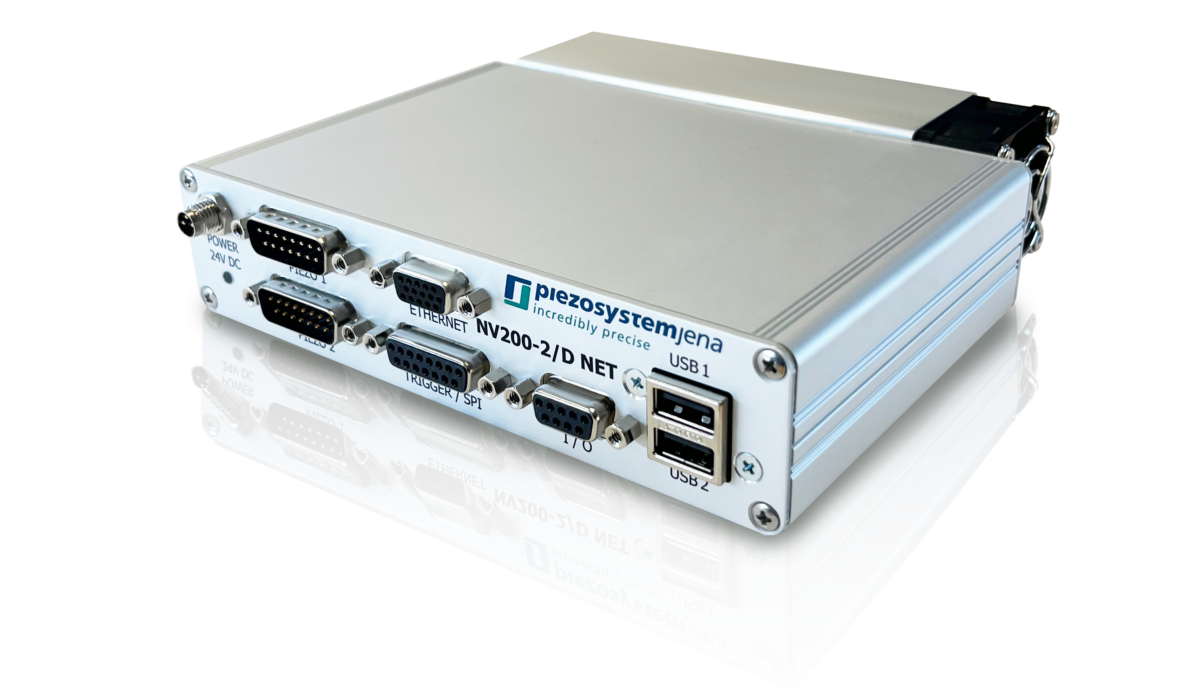

The NV200-2/D NET is a digital piezo controller for controlling two independent piezo actuators. Each channel can be controlled independently via the serial and Ethernet interface for local and remote operation and servicing of piezo actuators. The user can control quasistatic or dynamic stepping position applications via network access, allowing greater flexibility and use in critical environments, with over temperature protection feature.
| - | UNIT | NV 200-2/D NET |
|---|---|---|
| Part # | - | E-730-823 |
| Channels | - | 2 |
| Output Voltage | V | -20… +130 or -10… +180 (automatically adapts to actuator) |
| Output Current | mA | 200 / 400 Peak |
| Output Current NanoX®-mode | mA | 2 x 100 / 2 x 200 peak (1.2ms) |
| Voltage Noise (@500 Hz bandwidth) | mVrms | 0.7 |
| Sensor | - | External sensor, strain gauge, capacitance |
| Interface Module | - | USB-A, Ethernet, SPI / Trigger Analog modulation / Monitor |
