piezosystem jena 創立於德國耶拿，專注於奈米級壓電致動與定位解決方案。憑藉 30 年以上經驗與德國精密工藝，產品廣泛應用於光學、生命科學、半導體與精密製造，並提供高精度、高可靠性的標準與客製化平台。

Piezosystem Jena 高功率放大器 High Power Amplifiers hpower LE 1000/035 Amplifier

產品介紹

L
o
a
d
i
n
g
.
.
.

L
o
a
d
i
n
g
.
.
.

High Power Amplifiers/高功率放大器

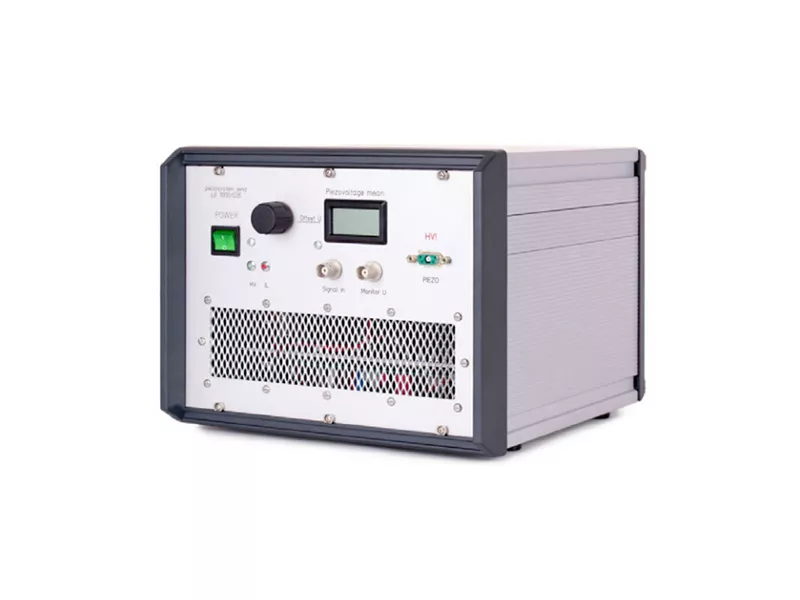

hpower LE 1000/035 Amplifier

Gain100
Weight6.5 kg

產品規格表

-	UNIT	LE 1000/035
Output Voltage Range	V	0 … +1000
DC-offset Range	V	0 … +1000
Gain	-	100
Max. Output Current	A	350 mA
Main Voltage	V AC	230 ±10% @ 50/60 Hz
Dimensions	mm	260 x 270 x 210
Weight	kg	6.5

產品說明

hpower actuators combine fast response times in µs, superior kHz dynamics, high force generation in the range of tens of kN, and nanometer precision. The LE 1000/035 is an analog amplifier with 350 mA output current, specifically designed for use with standard hpower piezo stack and ring actuators that need to work at high frequencies.

相關文件

LE-1000-035-Datasheet.pdf下載
LE-1000-035-Manual.pdf下載
