One-Channel Amplifiers
Series Overview
One actuator, one amplifier — the single-channel series covers the full spectrum from static fine adjustment to fast scanning with four current classes, the most common piezo drive configuration.
Key Features
- Four output classes: 10/40/200/300 mA
- Bench-top instruments and OEM modules
- Optional closed-loop position control on most models
- 200 mA class includes the digital NV 200/D NET (USB/Ethernet/Python)
Typical Applications
- Single-axis lab positioning
- Embedded OEM driving
- Rapid R&D prototyping
- Digital automation integration (NV 200/D NET)
Selection & Support
Key criteria: actuator capacitance and target frequency define the current class; automation needs define the interface. As the Taiwan distributor of piezosystem jena, Nahshon provides local technical support, selection assistance and factory quotations — add your requirements to the inquiry list or contact us directly.
Product Series
10mA
10 mA single-channel amplifiers: compact drives for small-capacitance actuators in static and low-frequency applications — bench-top and OEM formats with optional position servo.40mA
The 40 mA class is the versatile standard: the NV 40 family covers most actuators and stages, with display and closed-loop options on bench-top units and OEM module versions.200mA

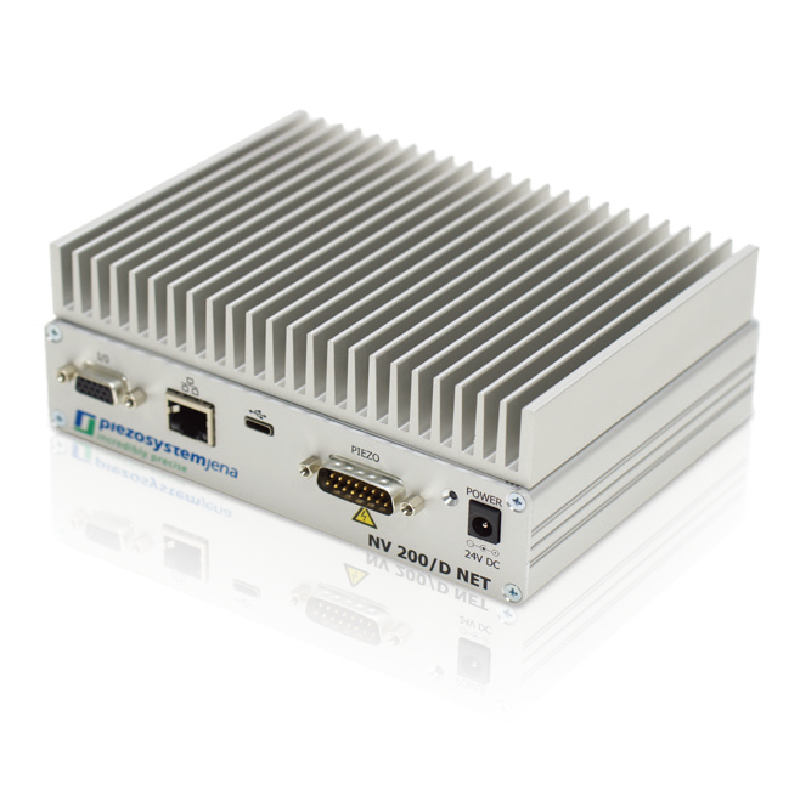

The 200 mA class serves higher dynamics and includes the digital NV 200/D NET generation: USB/Ethernet interfaces and a Python library plug piezo driving straight into automation architectures.300mA

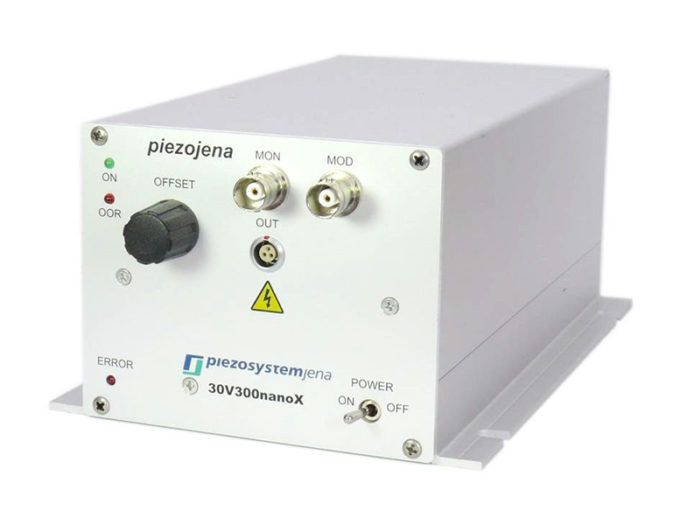

The 300 mA class delivers maximum single-channel dynamics: models like the 30V300/30DV300 support fast large-signal operation — the standard match for high-speed stages such as the nanoX family.
Featured Products
- Loading...nano box USBView This Product
- strain gauge sensor controller
- low-noise output signal
- USB 2.0 interface
- 16 bit resolution
- Loading...
12V40View This Product- 1-channel OEM piezo controller
- Compact dimensions
- 40 mA permanent output current
- Protected by a robust metal casing
- 12 V DC main voltage
- Modulation input
- Monitor output
- Loading...
NV 200/DView This Product- Real time SPI interface
- Analog interface
- Trigger I/O
- 400 mA peak current
- Automatic Sensor Calibration (ASC function)
- 16 bit resolution
- Feedback control with adjustable PID or ILC control
- Low-pass filter and slew rate limiter
- Arbitrary waveform generator
- Data recorder
- Loading...
NV200-2/D NETView This Product- USB-A interface
- Real time SPI interface
- Analog interface
- Trigger 1/0
- ASC-function
- Low-pass filter + slew rate limiter
- Feedback control with adjustable PID / ILC controller
- Arbitrary waveform generator
- Data Recorder
- Integrated piezo current measurement
- Loading...
30V300View This Product- 1-channel low noise piezo controller
- Main supply voltage of 10 ... 30 V DC
- 300 mA permanent output current
- Robust metal casing
- Small dimensions
- CLE version for all closed-loop systems
- Casing design changeable between 19-inch screw-slot and stand-alone version
- Loading...
30DV300View This Product- Auto calibration and ASI-function (Automatic Sensor Identification)
- For all kinds of closed-loop sensors
- Built-in wave function generator
- Programmable filter functions
