Stack type actuators
Series Overview
Piezo actuators convert voltage into displacement via multilayer stacks — the most direct way to turn an electrical signal into nanometer motion. piezosystem jena actuators combine low-voltage multilayer technology with stainless-steel housings for precision, lifetime and environmental robustness.
Key Features
- Sub-nanometer resolution, microsecond-to-millisecond response
- Forces up to several kN; internal preload for push and pull loads
- Wear-free and backlash-free — billions of cycles
- Full range: standard, sealed, high-dynamics hpower and special structures
- Optional strain-gauge sensors for closed-loop operation
Typical Applications
- Precision optical adjustment and autofocus
- High-speed valve and nozzle driving
- Vibration compensation and active damping
- Micro-positioning modules in production equipment
Selection & Support
Key selection criteria: travel, force, capacitance (which determines the amplifier) and environmental conditions. As the Taiwan distributor of piezosystem jena, Nahshon provides local technical support, selection assistance and factory quotations — add your requirements to the inquiry list or contact us directly.
Product Series
Standard Series
Standard piezo actuators are the backbone of the line: travels to several hundred micrometers, forces to several kN, sub-nanometer resolution, internal preload for push-pull loads — many lengths, sensor options and full customization.Sealed Series
Sealed actuators are built for harsh environments: protective sealing keeps out moisture and contaminants while retaining standard-series precision and dynamics — piezo performance where standard parts cannot go.hpower Series
hpower high-dynamics actuators are the powerhouses: microsecond response and forces to tens of kN, sustaining large-amplitude motion at kHz frequencies with matching high-power amplifiers and cooling options.Special Structures

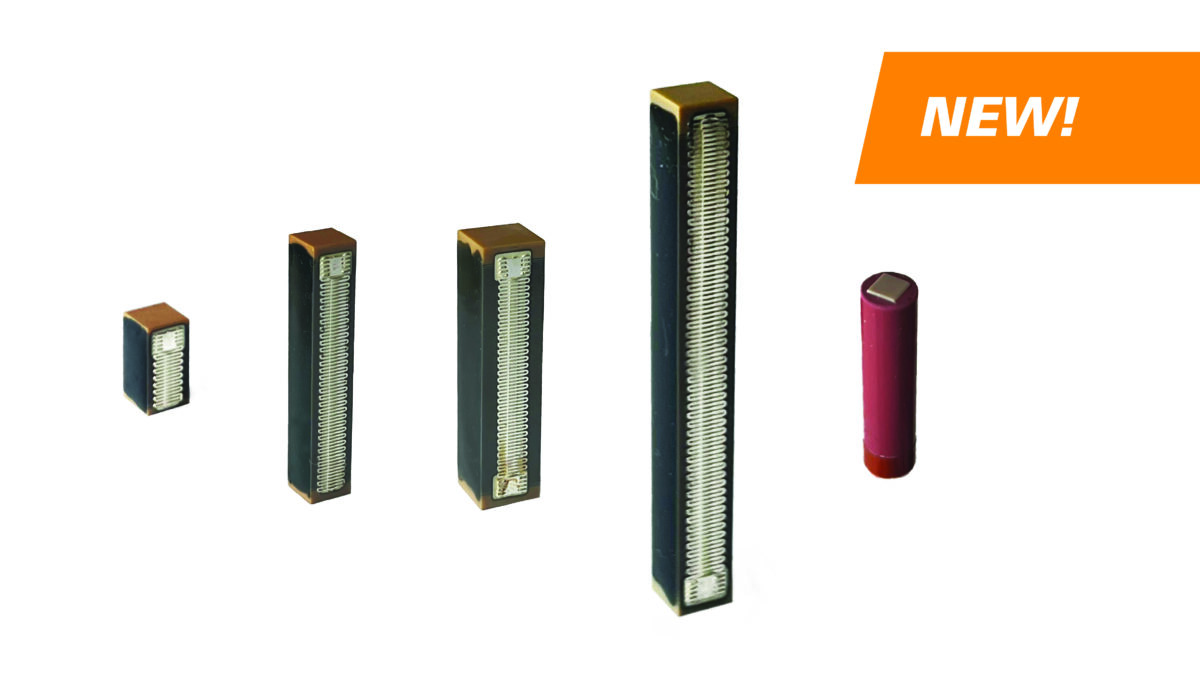

Special-structure actuators fill the corners standard parts cannot reach: hollow rings let light pass through, non-magnetic versions enter strong fields, ultra-compact types fit tight mechanisms — full custom capability on display.
Featured Products
- Loading...
Series PView This Product- No pre-load
- Motion up to 82 µm for P actuators
- High stiffness up to 210 N/µm for P actuators
- Blocking forces up to 850 N for P actuators
- Loading...
Series PAView This Product- Excellent dynamic properties due to high resonant frequencies
- Integrated mechanical preload
- Tensile forces up to 150 N
- Motion up to 140 µm (large ranges are available)
- High stiffness of up to 190 N/µm
- Vacuum and low temperature versions available
- Flat, round and threaded heads available
- Loading...
Series P/SView This Product- Hermetically insulated stack actuators
- For aggressive and humid environments (up to IP68)
- Integrated mechanical pre-load
- Very small and compact design
- Motion up to 70 µm
- M3 thread in the bottom plate for easy integration
- Loading...
hpower ActuatorsView This Product- Smart PZT ceramic stack design for high power and dynamic performance
- Disk-layering design with motion range up to 260 µm (higher upon request)
- Blocking forces up to 50 kN
- Available as bare stack or encased, with optional preload
- Preloaded versions withstand tensile stress for higher dynamics
- Encased versions protect against environment, support vacuum and thermal stability
- Optional integrated acceleration/force and position measurement
- PSt series: no casing, no preload; PSt VS series: cased and preloaded
- Loading...
hpower Shake & Triple-ShakerView This Product- Working frequency up to 70 kHz
- Maximum amplitude 12 µm
- Maximum force modulation 50,000 N
- Can accommodate a 150 kN compressive load
- Available as Shake (PiSha series) and Triple-Shaker versions
- Loading...CuX Stacks - Series CuX StacksView This Product
- Copper Inner Electrodes - Superior humidity resistance & reliability
- +20% Stroke - Due to minimized inactive zones
- Lead-free Bonding - For use in high temperature environments, up to 200°C
- Up to 2.6 kN Force / 83 μm Stroke - In a compact footprint
- Fast delivery times, High quantities available
