microTRITOR/xyz positioner

micro TRITOR

microTRITOR

piezosystem jena Exclusive Distributor Taiwan

開迴路運動範圍9 µm
解析度開迴路0.02 nm
重量12 g

Product Features

3D nano-positioning stage
Compact design
Flexure hinge design without mechanical play
Motion range up to 9 µm
Ultra-precise translation based on FEA-optimized parallelogram design
High resolution positioning

Select Model

Quantity

Quick Inquiry

Call UsEmail UsChat on LINE Contact Us About This Product

Product Description

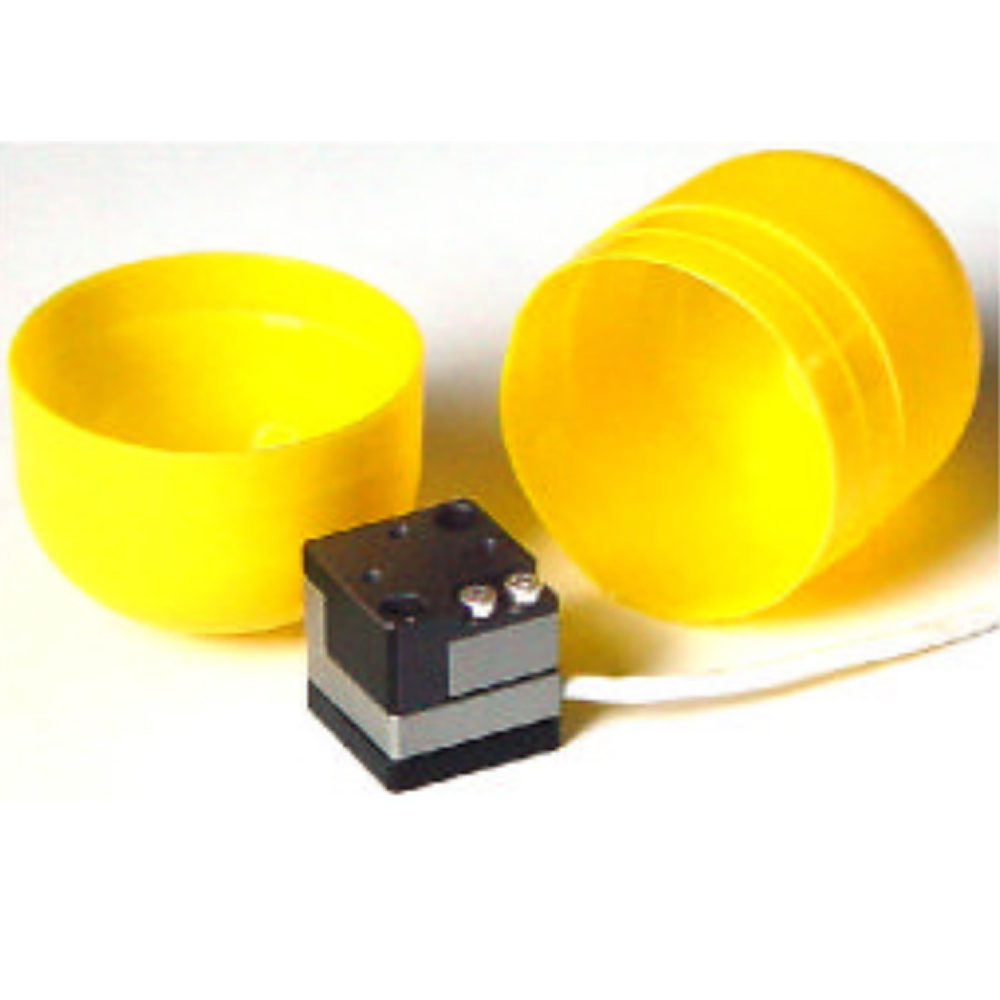

The unique three-dimensional microTRITOR piezo stage uses extremely compact components with a mechanical design that achieves play-free parallel motion. Despite its minimal size, it achieves motion up to 9 µm on three axes with sub-nanometer resolution.

The microTRITOR can be easily integrated with other mechanical or electromagnetic positioning systems to create positioning systems with extremely high resolution. Due to its unique design, the microTRITOR is especially suitable for dynamic applications.

Product Specifications

規格項目	單位	microTRITOR
軸向	-	X, Y, Z
開迴路運動範圍 (±10%)	µm	9
解析度開迴路	nm	0.02
尺寸 (長 x 寬 x 高)	mm	15 x 15 x 15
重量	g	12

Related Files

microTRITOR-Part-Drawing.pdfDownload
microTRITOR-Datasheet.pdfDownload

FAQ

How do I choose between open-loop and closed-loop versions?

Choose closed-loop when you need absolute positioning accuracy and repeatability (e.g. measurement, alignment). Open-loop is more cost-effective and responds faster when you only need relative fine motion or scanning, or when your system already has its own feedback.

Can I test the unit before deciding?

Nahshon is the exclusive distributor of piezosystem jena in Taiwan and keeps commonly used demo units available for scheduled testing, with Chinese-language selection support and direct access to factory engineering.

How do I confirm pricing and lead time for micro TRITOR?

Add micro TRITOR along with your stroke, load and accuracy requirements to your inquiry list, and we'll help confirm the selection and reply with the factory quote and lead time.
