Founded in Jena, Germany, piezosystem jena is a leading provider of nano-precision piezoelectric actuators and positioning solutions. With over 30 years of expertise, its products serve optics, life sciences, semiconductors, and precision manufacturing, delivering high accuracy and customizable performance.

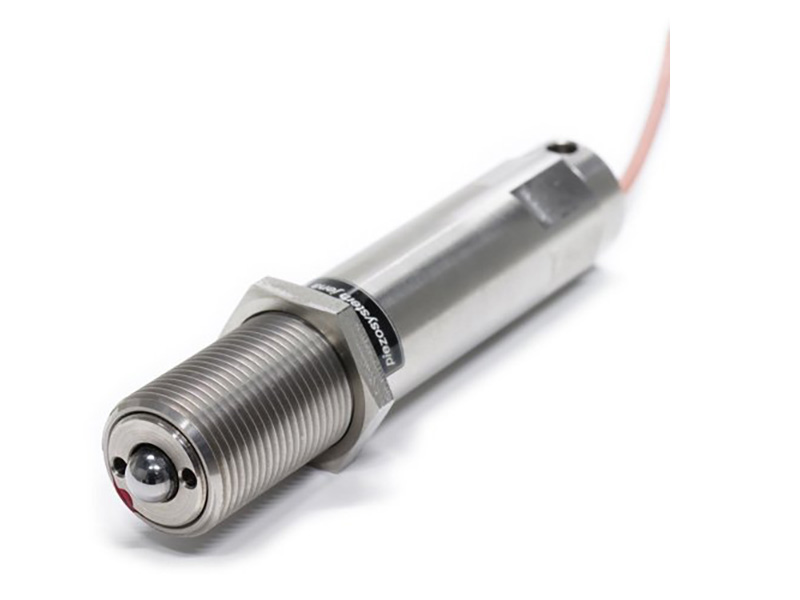

Piezosystem Jena Stack type actuators Standard Series Series PA/T

Product Overview

L
o
a
d
i
n
g
.
.
.

L
o
a
d
i
n
g
.
.
.

Standard Series/Stack type actuators

Series PA/T

Part #P-354-00
Capacitance3.6 µF
Stiffness20 N/µm
Diameter14 mm

Product Features

Excellent dynamic behavior by integrated preload
Versatile use by M14 outside threading
Ball tip head piece protects the ceramic from shear stress (threaded head optional)
Very small and compact design
Tensile forces up to 150 N
Motion up to 125 µm (open-loop)
Vacuum and cryogenic temperature versions available

Select Model

Quantity

Quick Inquiry

Call Us Email Us Contact Us About This Product

Product Specifications

Name	UNIT	PA 35/T14	PA 120/T14	PA 35/T14 SG	PA 120/T14 SG
Part #	-	P-354-00	P-360-00	P-354-01	P-360-01
Motion in Open-Loop (-10/+20%)*	µm	42	125	–	–
Motion in Closed-Loop	µm	–	–	34	100
Capacitance (±20%)**	µF	3.6	10.8	3.6	10.8
Stiffness	N/µm	20	7	20	7
Blocking force	N	850	850	850	850
Resolution in Open-Loop	nm	0.08	0.25	–	–
Resolution in Closed-Loop	nm	–	–	0.7	1.0
Outside threading	-	M14x1	M14x1	M14x1	M14x1
Dimensions – Length	mm	53	125	53	125
Diameter	mm	14	14	14	14

*Typical value measured with NV 40/3 (closed-loop: NV 40/3 CLE). **Typical value for small electrical field strength. Resolution is limited by control-signal noise only.

Related Files

PAT-Datasheet.pdfDownload
PAT-Part-Drawing.pdfDownload
