- 運動範圍20 微米
- 解析度<0.1 奈米
- 剛性5 N/µm
- 諧振頻率2000 Hz
Product Features
- 20 µm focusing range
- Compact design
- High resonant frequency
- Easy to attach on microscopes
- Universal thread adapters
- Optional integrated feedback sensor
Select Model
Quantity
L
o
a
d
i
n
g
.
.
.
Product Overview
L
o
a
d
i
n
g
.
.
.
L
o
a
d
i
n
g
.
.
.

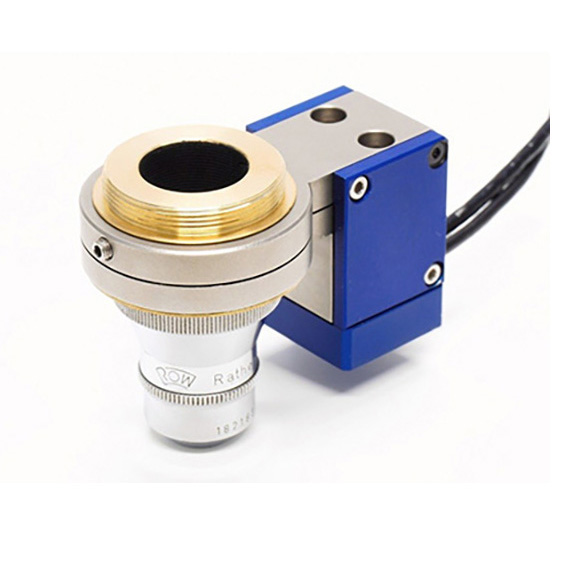

MIPOS/MIPOS piezo focus lens positioner
MIPOS 20
Product Description
產品說明
MIPOS 20 物鏡定位系統專為精密調整微物鏡和物鏡而開發。最大運動範圍為 20 µm。MIPOS 20 的解析度非常高，實際上僅受電源供應器電壓雜訊的限制。
MIPOS 20 的頂部和底部均提供適用於 Zeiss、Leica、Nikon、Olympus 等各種標準螺紋的轉接環。
將此系統安裝到顯微鏡上非常簡單 - 只需將 Flex-Adapter 螺紋環擰入顯微鏡，然後用螺絲將物鏡定位系統安裝在此環上。由於體積小巧，MIPOS 旁邊的其他螺紋不會受到阻擋。
為避免漂移和遲滯，可選配整合式應變規測量系統「SG」版本。
Product Specifications
| 規格項目 | 單位 | MIPOS 20 | MIPOS 20 SG |
|---|---|---|---|
| 軸向 | - | Z | Z |
| 運動範圍 | 微米 | 20 | 20 |
| 解析度 | 奈米 | <0.1 | <0.1 |
| 諧振頻率 | Hz | 2000 | 2000 |
| 剛性 | N/µm | 5 | 5 |
| 尺寸（直徑 x 高） | 毫米 | Ø44 x 15 | Ø44 x 15 |
| 重量 | 克 | 60 | 60 |
Related Files
- MIPOS-20-Datasheet.pdfDownload
- MIPOS-20-SG-Part-Drawing.pdfDownload
- MIPOS-Accessories-Datasheet.pdfDownload
FAQ
How do I choose between open-loop and closed-loop versions?
Choose closed-loop when you need absolute positioning accuracy and repeatability (e.g. measurement, alignment). Open-loop is more cost-effective and responds faster when you only need relative fine motion or scanning, or when your system already has its own feedback.
Can I test the unit before deciding?
Nahshon is the exclusive distributor of piezosystem jena in Taiwan and keeps commonly used demo units available for scheduled testing, with Chinese-language selection support and direct access to factory engineering.
How do I confirm pricing and lead time for MIPOS 20?
Add MIPOS 20 along with your stroke, load and accuracy requirements to your inquiry list, and we'll help confirm the selection and reply with the factory quote and lead time.
