- 運動範圍250 微米
- 解析度<1 奈米
- 剛性0.5 N/µm
- 諧振頻率330 Hz
Product Features
- 250 µm focusing range
- Compact design
- High resonant frequency
- Easy to attach on microscopes
- Flexible use via Flex-Adapter
- Optional integrated measurement system
Select Model
Quantity
L
o
a
d
i
n
g
.
.
.
Product Overview
L
o
a
d
i
n
g
.
.
.
L
o
a
d
i
n
g
.
.
.

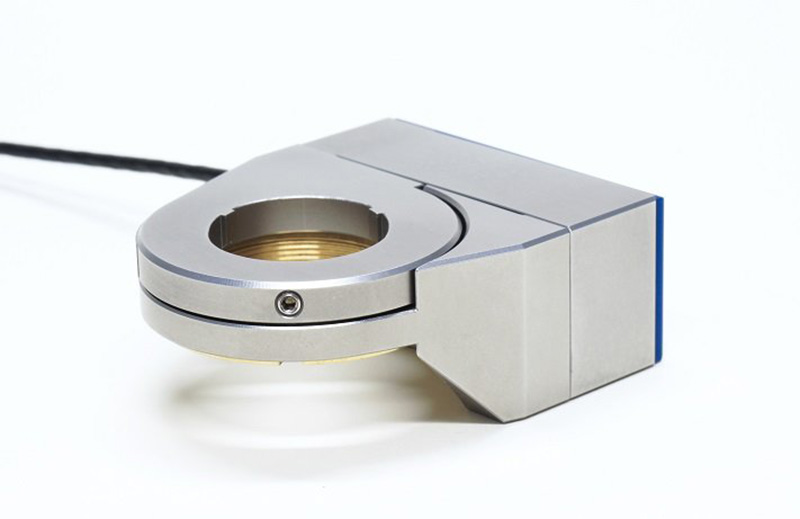

MIPOS/MIPOS piezo focus lens positioner
MIPOS 250
Product Description
The piezo focus positioner MIPOS 250 was developed for finely adjusting micro objectives and object lenses. The maximum motion is 250 µm. The resolution of the MIPOS 250 is very high, and in practice only limited by the voltage noise of the power supply.
All kinds of standard threads for Zeiss, Leica, Nikon, Olympus etc. are available for the top and bottom sides of the MIPOS system. Mounting this system onto the microscope is very easy – screw the Flex-Adapter thread ring into the microscope and mount the MIPOS 250 for piezo focus fine adjustment on this ring with a screw. Because of the small size, no other threads beside the MIPOS are blocked.
To avoid drift and hysteresis, there is the option of equipping the MIPOS with an integrated strain gauge measurement system “SG”. And, the MIPOS 250 can be used in inverse microscopes – upside down.
Product Specifications
| 規格項目 | 單位 | MIPOS 250 | MIPOS 250 SG |
|---|---|---|---|
| 軸向 | - | Z | Z |
| 運動範圍 | 微米 | 250 | 250 |
| 解析度 | 奈米 | <1 | <1 |
| 諧振頻率 | Hz | 330 | 330 |
| 剛性 | N/µm | 0.5 | 0.5 |
| 尺寸（直徑 x 高） | 毫米 | Ø44 x 26 | Ø44 x 26 |
| 重量 | 克 | 90 | 90 |
Related Files
- MIPOS-250-Accessories.pdfDownload
- MIPOS-250-SG-Part-Drawing.pdfDownload
- MIPOS-250-Part-Drawing.pdfDownload
- MIPOS-250-Datasheet.pdfDownload
- MIPOS-250-CAP-Part-Drawing.pdfDownload
FAQ
How do I choose between open-loop and closed-loop versions?
Choose closed-loop when you need absolute positioning accuracy and repeatability (e.g. measurement, alignment). Open-loop is more cost-effective and responds faster when you only need relative fine motion or scanning, or when your system already has its own feedback.
Can I test the unit before deciding?
Nahshon is the exclusive distributor of piezosystem jena in Taiwan and keeps commonly used demo units available for scheduled testing, with Chinese-language selection support and direct access to factory engineering.
How do I confirm pricing and lead time for MIPOS 250?
Add MIPOS 250 along with your stroke, load and accuracy requirements to your inquiry list, and we'll help confirm the selection and reply with the factory quote and lead time.
